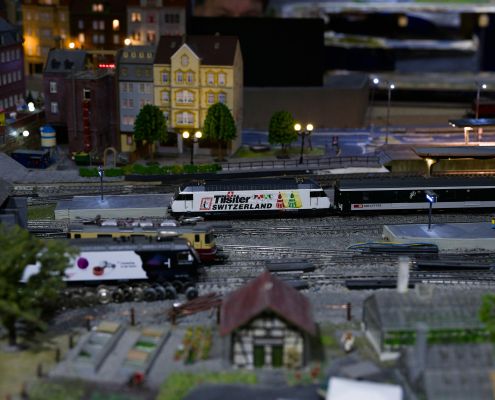

Ambient light is the most basic decorative element on a model railroad field table or diorama. But the lights don’t just shine at night! Constant night lights are needed, but you can create varied visual elements by switching the lights randomly.
Whether it is building lighting, lighting common areas in apartment buildings or public lighting in industrial areas, the Ambient Light Panel provides the perfect solution for this. You can switch LED lighting on six independent outputs, you can connect up to 3-4 LEDs to each output at the same time.
After that, set some kind of random automatism for them or connect them to a switch or occupancy detector.

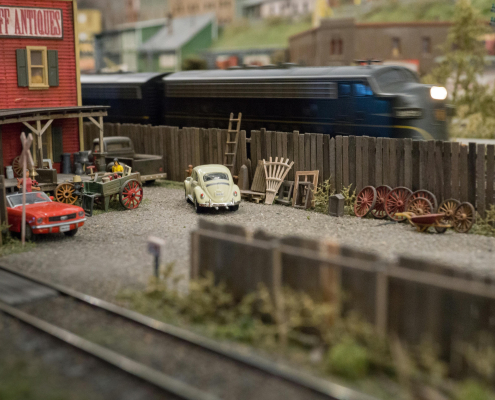

In addition to ambient lights, you can also work with two independent effect outputs. The effects can be automated in the same way as the lights, you can set randomness or event control (keypad or occupancy detection) to them.
The effects can be: on-off, fading, fire, welding, faulty bulb and industrial light. The intensity and speed of each effect can be adjusted, so you can choose between slow and intense fire, and 1, 2, 3 times industrial flashing functions.
You can also connect several LEDs to these outputs, for example the fire is more lifelike by using one orange and two red LEDs.
Outputs
- Voltage5V
- Night1x800 mA
- Light6x100 mA each
- Effect2x100 mA each
- Total9 outputstotal max. 1100 mA = 1.1 A
How to properly connect the panel?
